XTrail Gravel Wheelset 1495g 20mm Internal Width


Lightweight Performance for Racing and Adventure

Gravel bikes offer so many options on where you can ride your bike making any ride the adventure of a lifetime!

This set up can take you places! Off road trails, fire roads and goat tracks are no match and the XTrail wheel set is a perfect match providing a comfortable, lightweight wheel set that can cope with the toughest of terrain.

Upgrade your existing wheels, or bring another dimension to your gravel bike!


$19.95 Shipping Australia Wide


Available in Shimano or SRAM XDR - Specify in the order notes what you need, or we will be in touch befor the wheels are sent.

OPTIMAL COMFORT & PERFORMANCE - A 20mm internal rim width and low profile allows for a perfect fit on a large range of sizes and a level of compliance to provide comfort on multi terrain surfaces.

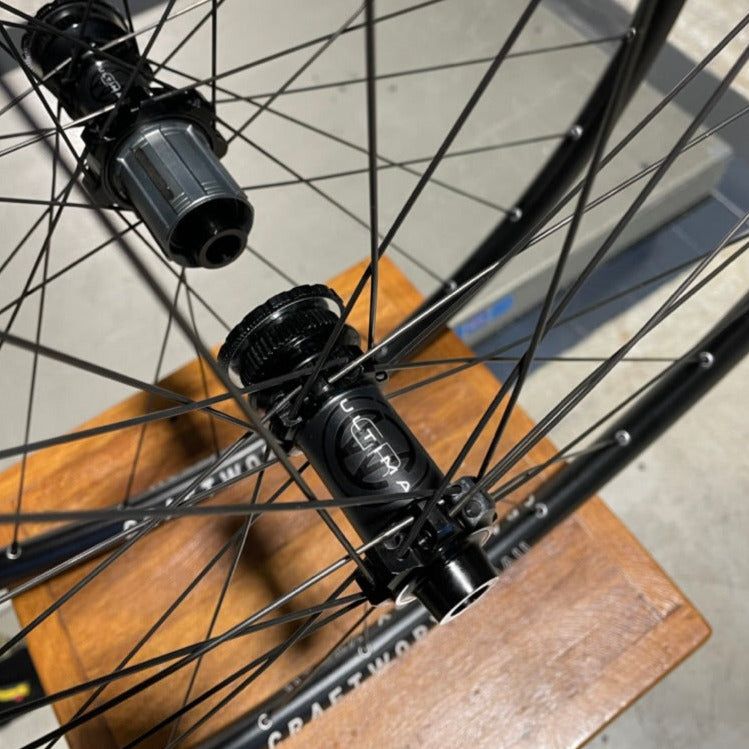

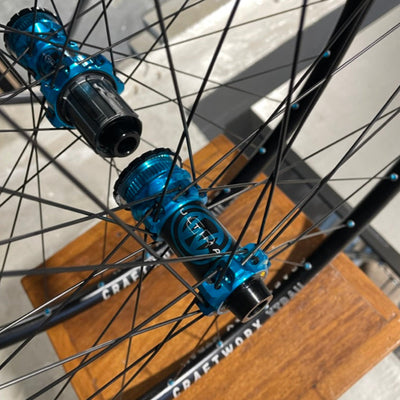

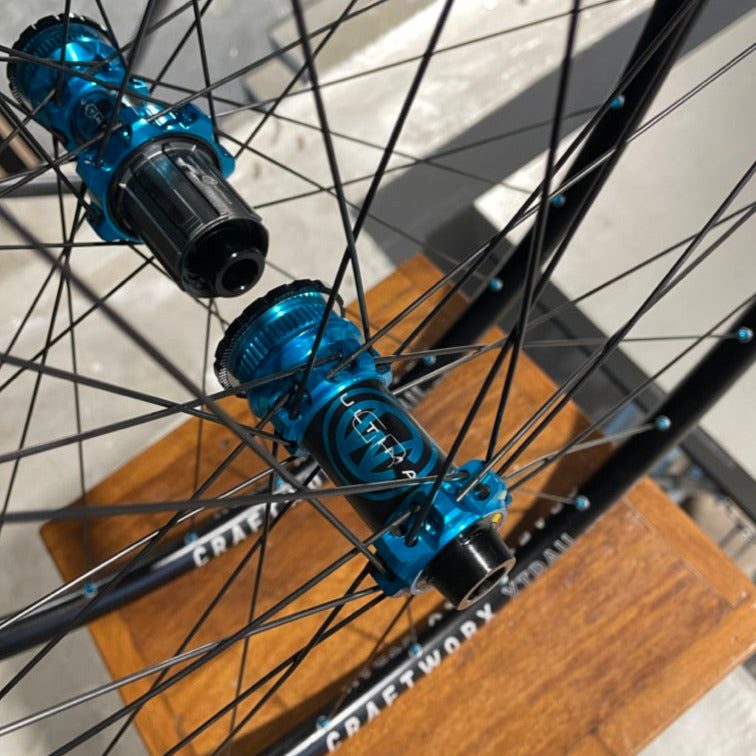

SMOOTH AND DURABLE HUB SYSTEM - The Ultima GR straight pull hubs are light and durable. Can be set up for either Shimano or SRAM XDR. Specify in the note section when ordering what drivetrain you have, or we will give you a call before we build the wheels.

TUBELESS READY FOR FASTER RIDING AND NO FLATS - Run the Xtrail Gravel wheels tubeless for more traction and speed off-road and no punctures! Fitting tubeless tyres can be difficult but not on our Xtrail wheels. We’ve designed our wheels to make fitting tubeless ready tyres easier! You’ll be surprised at how easy it is!

Wheel Specifications

Rim Model

Rim - Craftworx XTrail STSS Alloy Tubeless Ready

Rim Depth

Height - 18mm

Rim Width

External - 24mm

Internal - 20mm

Weight - 20mm


Hub Model - Craftworx Ultima GR

Bearings - Sealed Bearings

Freehub - Shimano/Sram 10, 11 Speed or SRAM XDR

Disc Brake Compatibility - Centrelock

Axle Types - 12x100 front & 12x142 rear Thru-Axle


Bladed Stainless Steel Straight Pull (Black) 28 front & 28 rear

Customer Reviews

Based on 2 reviews
XTrail Gravel Wheel Set

Having scoured the world for a good value set of hand built wheels, it was by chance I stumbled upon Craftworx. The fact they are Australian made and based down the road from me made the choice a no-brainer. Mark was fantastic to deal with and patiently answered all my questions and more.
The wheels themselves are awesome. They look subtly expensive, are beautifully made and great to ride.
Craftworx are highly recommended and come with the added benefit in knowing you’re supporting an Australian based business. Why go anywhere else?

steve kennett
Upgrade my Felt gravel bike

I’m the owner of a budget gravel bike from Felt and since upgrading to the craftworx 640B rims adding 50mm tubeless tyres it converted my bike into a beast. I’ve traveled 300km so far and 120km of that on gravel and the rims haven’t missed a beat, also they look sick, I’ve had a lot of comments and admiration about the look, no of spokes and the labeling
